Bag Stacker

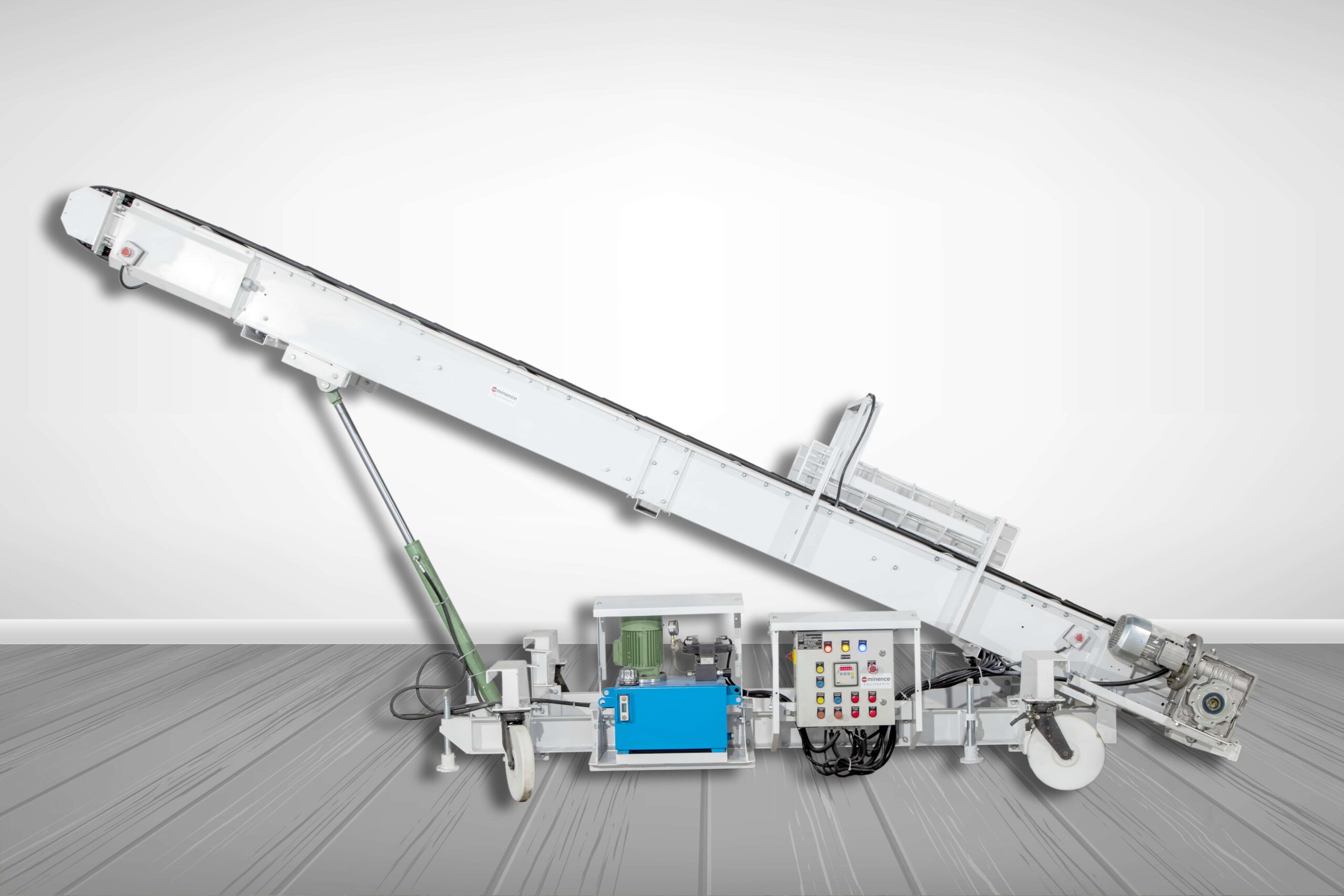

Eminence Hydraulic Bag Stacker is expertly designed to simplify and streamline the stacking of grain or material bags, ensuring safe and efficient loading operations. Built with a powerful hydraulic pack, it allows for easy adjustment of stacking height and smooth mobility on wheels, enabling flexible positioning at the job site.
Its high-speed performance, coupled with precise control, ensures consistent and safe handling of bags. The rugged construction reduces manual effort and significantly boosts productivity in bulk material handling environments. Engineered for durability and ease of use, Eminence’s Bag Stacker is the ideal solution for industrial-grade stacking needs.
Enquire Now
Get the Full Product Brochure
Discover detailed specifications, features, and configurations of our machinery. Download the brochure to explore how our solutions can meet your industry’s processing needs with efficiency and reliability.
Types of Bag Stacker
1. Grain Bag Stacker
Eminence Equipment has designed and developed an advanced Hydraulic Bag Stacker to efficiently pile and manage grain bags in bulk handling operations. This high-performance grain bag stacking machine is engineered for durability and speed, making it ideal for warehouses, agriculture industries, and food processing units. These stackers can reach a maximum height of 23 feet, enabling stacking up to 25 layers of bags. The Hydraulic Bag Stacker is capable of handling 100 kg bags with a throughput capacity of 450 to 500 bags per hour, ensuring high productivity.
The grain bag stacking system comes with an adjustable discharge height powered by an electric drive motor mechanism. This bag handling equipment allows height adjustment from a minimum of 10 feet to a maximum of 23 feet, offering flexibility for different warehouse setups and material handling requirements. The Hydraulic Bag Stacker is widely used in industries requiring efficient bag loading, unloading, and stacking solutions.
A specially designed conveyor belt ensures maximum grip and stability, preventing slippage during operation. This belt conveyor stacker improves operational safety and efficiency while handling bulk bags. Additionally, the system supports reverse motion, allowing easy unloading of stacked bags, making it a versatile bag stacking conveyor solution.
Fixed-type bag stackers are ideal for optimizing vertical space utilization. These industrial bag stackers can efficiently handle bags across multiple levels, including the first, second, and third floors, making them suitable for multi-level warehouses and storage facilities.
The system is also equipped with an electronic bag counter that accurately tracks the number of bags processed. This automated bag counting system ensures precision and can stop the conveyor once the desired quantity is reached. Even in case of power failure, the counter resumes from the last recorded count, ensuring no data loss and maintaining operational continuity.
Technical Specification
|
Specification
|
Value
|
|---|---|
|
Capacity
|
500 Bags per hour
|
|
Length
|
38 ft. (11.5 mtr)
|
|
Power
|
5 HP & 1.5 HP
|
|
Discharge Ht
|
23 ft maximum
|
|
Discharge Mech
|
Electrical auto UP-DN motion
|
|
Width
|
600 mm
|
2. Grain Pouch/box Mover
Eminence equipment offers a complete system for handling Pouch and Boxes. Handling of Pouch from Pouch packing machine to Box / Bag packing then handling Box / Bags to godowns or to loading trucks.
We design such systems as per customers requirements and supply complete one stop solution for handling Grain Pouch, Bags and Boxes.
Technical Specification
|
Specification
|
Values
|
|---|---|
|
Capacity
|
500 Bags per hour
|
|
Length
|
20ft, 3ft, 45ft, 54ft or as per requirement
|
|
Power
|
2 HP to 5 HP
|
|
Belt Width
|
600 mm
|
|
Height
|
750 mm
|
Frequently Asked Questions
What is a bag stacker and where is it used?
A bag stacker is a material handling machine used for efficient stacking of grain bags, fertilizer bags, and other packed materials in warehouses, godowns, and loading areas. It helps improve productivity and reduces manual handling effort.
What is the stacking capacity of a bag stacker?
Industrial bag stackers can typically handle around 450 to 500 bags per hour, depending on bag weight, conveyor speed, and operational conditions.
What is the maximum stacking height of a bag stacker?
Modern hydraulic bag stackers can reach up to about 23 feet stacking height, allowing efficient use of vertical warehouse space and stacking up to multiple bag layers.
What are the key features of a bag stacker system?
Bag stackers usually come with hydraulic height adjustment, mobile wheel arrangement, electronic bag counters, strong grip belts, and reverse operation capability for unloading stacked bags safely and efficiently.
